For this solution the Merlin 1000Si is to be used an isolation utility controller that controls the fire pit gas supply through a solenoid valve and interrupts the line voltage to the panel with a digital programmable timer, the AGSPGT7M, providing 7 day automatic control. If either the 1000Si controller is in alarm condition or any of the remote EPO buttons alarm the gas solenoid valve will close and will only re-energize once the fault has been cleared. For additional appliances, a separate digital programmable timer will provide 7 day automatic control over a single or multiple gas solenoid valves.

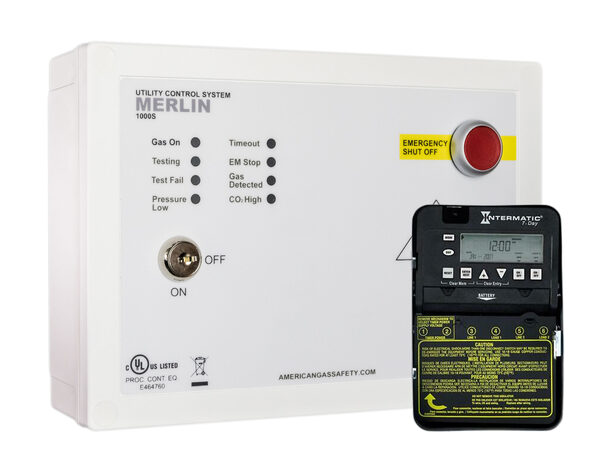

The Merlin 1000Si is an isolation utility controller that allows the user to control utilities to the spaces at any given time whilst also including built in safety features to protect the building and the people inside. Most commonly the Merlin 1000Si range controls the gas, electric or water supply using a key switch and also features variable time out functions. The Merlin 1000Si also allows for connections to existing fire alarm and building management systems. With its easy to use system status panel and labelled PCB the Merlin 1000Si is easy to install and easy to operate.
For further information on this solution please see downloads tab for CAD drawings & solution sheets.
• Key lock User control
• Gas detection
• In Built Time-out function
• Connects to existing Fire Alarm
• Easily wall mounted and labeled PCB
• Covered by American Gas Safety LLC 3Yr Warranty
• Height – 7.0 inch
• Width – 10.0 inch
• Depth – 2.4 inch
