AGS Gas Solenoid Valves

UL Listed Safety Shut Off

AGS GSV

American Gas Safety 110vac gas solenoid valves control the flow of natural and LP (liquefied petroleum) gases and are most commonly used with our range of utility controls and gas detection systems. Popular applications are science laboratories, commercial kitchens, boiler rooms & decorative gas features. Our gas solenoid valves are tested and certified to UL, Normally Closed, Safety Shut-Off valves with a max close time of 1 second and 0-5Psi pressure ratings.

Gas Valves available from 1/2″ through 2″ NPT. Larger sizes available upon request. Please contact your local rep for further details.

Zero Differential

0-5 PSI Max Working Pressure

110/120V ac 50/60Hz

1/4" Inlet & Outlet Ports

Visual Power Indication

Body: Die Cast Aluminum

Max Temp: 140°F

Min Temp: 5°F

Visual Power Indicator

Blue neon light provides the user a visual indication that power is at the gas solenoid valve & working correctly for added safety.

Sizes Available Part Codes

1/2 inch NPT

AGS-GSV12

AGSGSV12 Superseded Merlin1015

3/4 inch NPT

AGS-GSV34

AGSGSV34 Superseded Merlin1023

1 inch NPT

AGS-GSV1

AGSGSV1 Superseded Merlin1031

1+1/4 inch NPT

AGS-GSV114

AGSGSV114 Superseded Merlin1049

1+1/2 inch NPT

AGS-GSV112

AGSGSV112 Superseded Merlin1056

2 inch NPT

AGS-GSV2

AGSGSV2 Superseded Merlin1064

Gas Solenoid Valve Approvals

Technical Information

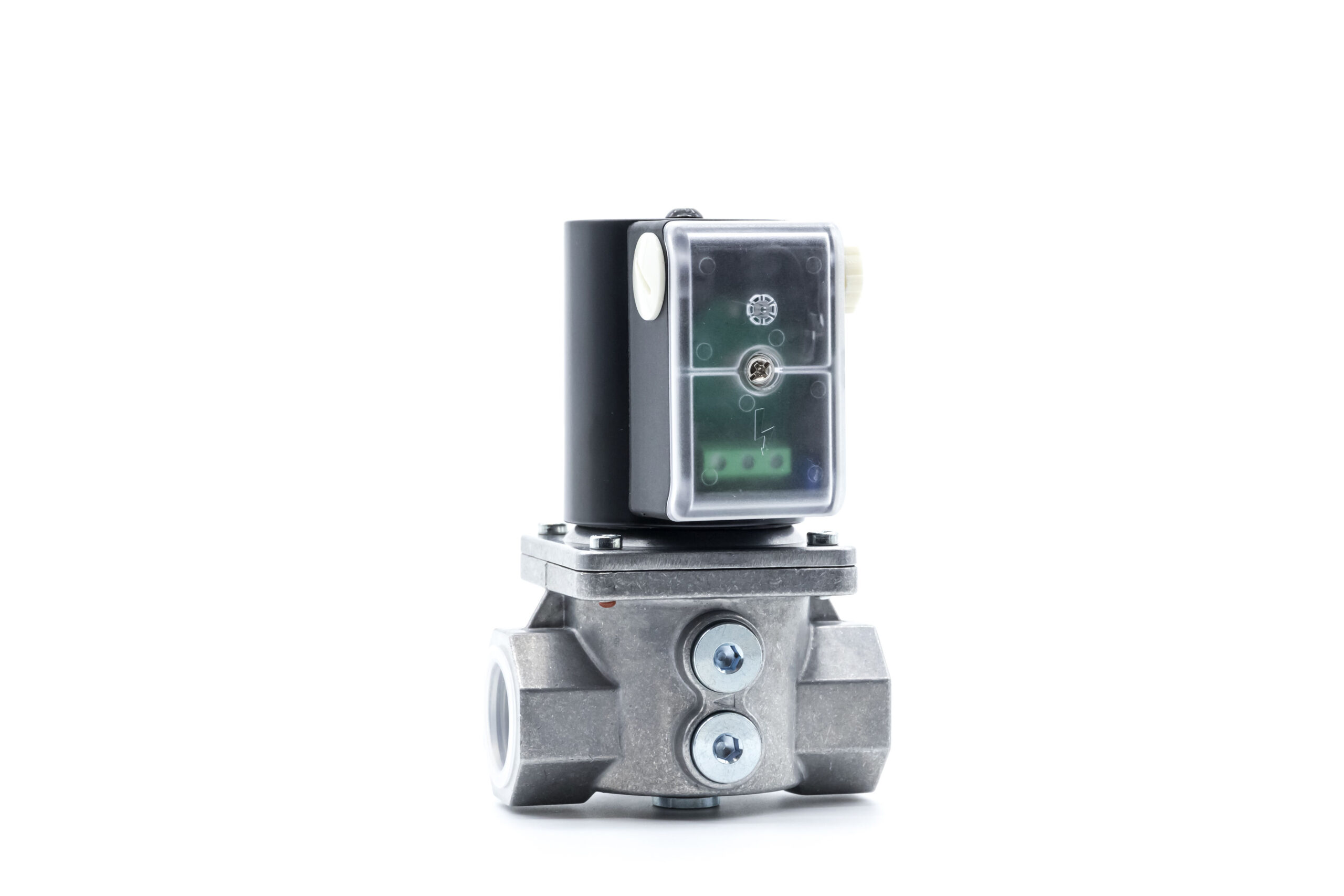

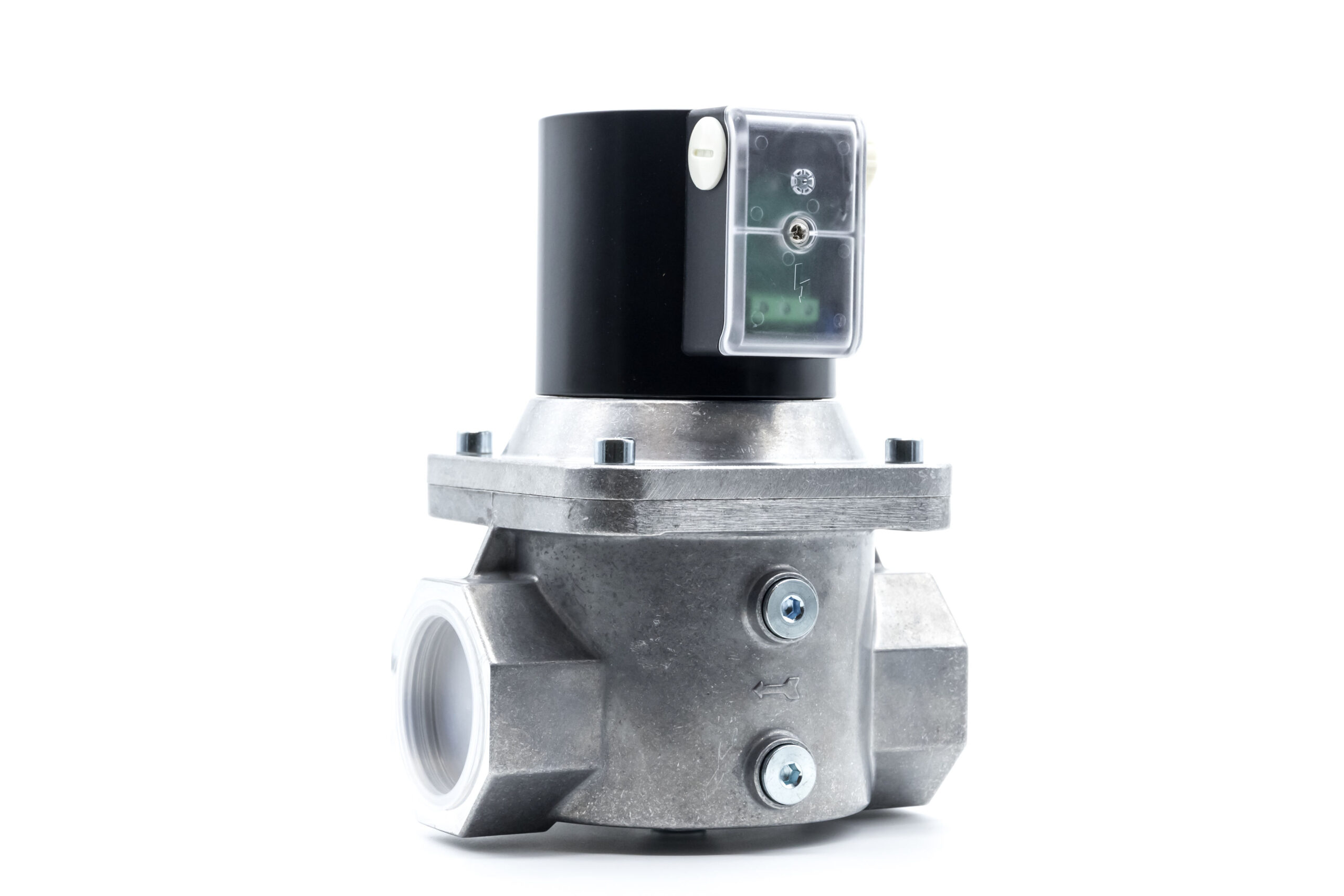

AGS gas solenoid valve ranging from 1/2″ to 2″.

AGSGSV Spec Sheet
AGSGSV Gas Solenoid Valve REVIT File
AGS Gas Solenoid Valve Cross Over Sheet

**OTHER SIZES ARE AVAILABLE UPON REQUEST. CONTACT AMERICAN GAS SAFETY OR YOUR LOCAL REPRESENTATIVE FOR FURTHER INFORMATION.
