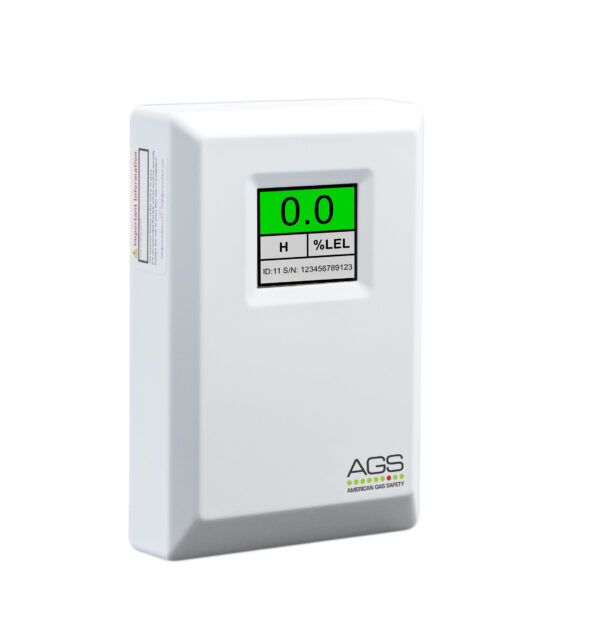

Merlin H TFT Gas Detector


The HTFT is a hydrogen semiconductor detector and should be mounted in accordance with certain considerations. Consider the density of gas for its application and position the detector accordingly. Natural gas is lighter than air and will therefore rise, meaning the sensor should be mounted 10 Inches from the Ceiling of the protected area. The Hydrogen gas detectors at detection will go into alarm at 10% of the low explosion level.  When connected to an AGS controller, this can be used to trigger the isolation of the power supply to a solenoid valve and as such isolation of the gas supply. This can then be rectified by resolving the leak, allowing the sensor head to clear and resetting the attached AGS panel and detector.

For further information on our Merlin gas detectors please refer to our product data sheet.

• 24VDC
• Traffic Light Indication
• Built-in Audible Alarm
• One Alarm Relay Output
• MODBUS Output
• End of Life Reminder
• Covered by American Gas Safety LLC 3 year warranty

• Height – 5.51 inch
• Width – 3.74 inch
• Depth – 1.18 inch
