AGSNO2iS-PSA

Nitrogen Dioxide (NO2)

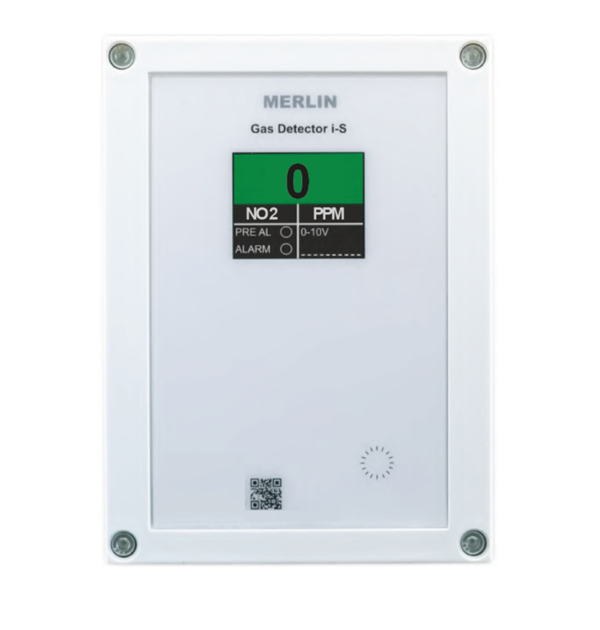

The AGSNO2iS-PSA is a nitrogen dioxide electro-chemical detector and is typically used as a standalone unit or in conjunction with an AGS controller within enclosed parking garages. This unit provides a clear digital display of the gas concentrations and the alarm condition housed in a robust ABS enclosure designed to withstand the parking environment. The unit comes with pre-programed alarm levels and requires no on-site set-up.

NO2 has a specific gravity of 1.448 and is therefore slightly heavier than air. As there is a requirement for constant air flow in the parking garage and taking into account other obstacles at lower levels, AGS recommends to mount the NO2 sensor is 48-60inches above ground level. When the sensor head detects NO2 at a level exceeding 0.7ppm the pre-alarm relay and 0-10v output changes state. Once the NO2 level drops the relay and 0-10v output reverts to original state. If the level continues to rise a second alarm relay set at 2ppm will change state along with the 0-10v output. In alarm the unit provides a local audible and visual alarm.

For further information please refer to our product data sheet.

• 24VAC or DC Powered
• Displays Live Gas Levels & System Status Indications
• Traffic Light Indication
• Built-In Audible Alarm
• Three Alarm Relay Outputs
• 0-10VDC Variable Output
• BMS/BAS standalone compatibility
• Various gas detector types available
• End of Life Reminder
• UL approved

• Height – 5.95 inch
• Width – 4.73 inch
• Depth – 1.97 inch
